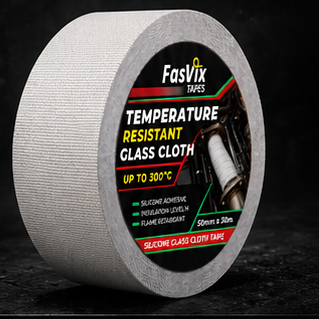

AI-generated white woven glass-cloth tape appearance, not manufacturer photography
Product image01 / 04

Woven glass fibres · silicone adhesive

White Glass-Cloth High-Temperature Tape

Put a considered material between the process and the detail you want to protect. White woven glass-cloth tape combines a glass-fibre backing with silicone adhesive for heat-minded insulation, masking and finishing concepts. Choose a 50 mm roll in 33 m or 50 m, then qualify the exact article for your temperature, exposure time and substrate.

premium · Glass-cloth backing / silicone adhesive

Choose your format

50 mm x 33 m · WhiteSKU 000199-01

Illustrative product appearance. Confirm the supplied article’s temperature-versus-duration limits and required process approvals before specification.

Technical information

A closer look

Woven glass. Built for heat.

Heat changes the specification. It should also change the tape you reach for. A woven glass-fibre backing and silicone adhesive give this white tape a distinct place in the process plan: covering a defined area, finishing an insulation detail or preparing a component for the next manufacturing stage. Bring the temperature, exposure time and surface into the decision — and choose the roll length that fits your production or maintenance work.

  • Woven glass-fibre backing
  • Silicone adhesive
  • Defined masking and wrapping details
  • 50 mm × 33 m or 50 m
Illustrative cool metal flange with a defined white glass-cloth masking detail before process qualification

Materials for the process plan

Two material roles. One considered process.

Glass fibres form the woven carrier; silicone adhesive provides contact with the selected surface. This is adhesive-backed glass cloth, not a self-fusing silicone wrap, aluminium heat-reflecting foil or PTFE-coated non-stick tape.

Woven glass-fibre carrier
A textile construction for a defined covering or insulation finishing detail. No measured tensile or electrical rating is implied.
Silicone adhesive
The contact layer attaches the cloth to the chosen substrate. Trial adhesion and removal through the actual process.
Temperature and time belong together
The catalogue indicates up to 300°C, but exposure duration and process conditions are not established. Confirm the current article-specific data before specification.
AI-generated woven glass-fibre backing and silicone adhesive concept
Material illustration, not a measured cross-section or certification.

Application contexts

Six industries. Six different working details.

Six distinct sectors, from electrical rebuilding and metal finishing to shipyard fabrication and aerospace process trials.

Explore applications
Electrical motor rebuilding: illustrative application context

Electrical motor rebuilding

Give a prepared winding a considered outer finishing wrap at the rebuilding bench. White glass cloth makes the detail visible; confirm the motor insulation system and the supplied tape’s electrical approval before use.

Metal finishing preparation: illustrative application context

Metal finishing preparation

Define the area before the coating process. Trial a glass-cloth masking detail on a cool flange or threaded zone, then validate the actual bake temperature, dwell time, edge result and removal.

Process-equipment insulation: illustrative application context

Process-equipment insulation

Finish the outer seam of an insulation mat on a dry, cool, decommissioned duct sample. Plan the covering detail around the process conditions — not as a duct leak repair or a pressure seal.

Shipyard fabrication preparation: illustrative application context

Shipyard fabrication preparation

Prepare a defined backing detail on the reverse of a cool metal-plate seam before a qualified submerged-arc welding process. Confirm the exact tape and welding procedure; the scene shows preparation, not active welding or a structural repair.

Automotive harness finishing: illustrative application context

Automotive harness finishing

Explore a local outer covering on an already insulated, removed low-voltage harness at the bench. Match the tape to the component’s environment and assembly requirements — not an exhaust wrap, fuel-line repair or high-voltage approval.

Aerospace process trials: illustrative application context

Aerospace process trials

Make the masking trial part of the production plan. Use a non-flight metal test coupon to assess adhesion, the heat cycle and removal before any qualified production specification. This concept does not establish airworthiness or a repair approval.

AI-generated process concepts, not approved installations or manufacturer photographs. Qualify the exact supplied article for every application. Industry examples do not establish aerospace, marine, electrical or other certification.

Product information

Get the details
before the decision.

The construction, dimensions and product codes in one place.

Discuss the specification
Construction
Woven glass-fibre backing · silicone adhesive
Catalogue temperature indication
Up to 300°C — duration and process conditions require confirmation
Listed formats
White · 50 mm × 33 m or 50 mm × 50 m
Electrical ratings and certifications
Not established for the supplied article — request current documentation
Product
White Glass-Cloth High-Temperature Tape
Range
Premium
Colours / patterns
White
Product formats
50 mm x 33 m · 50 mm x 50 m
Product variants
FormatColour / patternSKUEANPack
50 mm x 33 mWhite000199-013830044410827—
50 mm x 50 mWhite000200-013830044410803—

Documents & guidance

Information for the next step.

Get the product information and guidance that fit your application.

Good questions

Specify the heat cycle, not just the tape.

Have another detail to discuss? Bring it to our team.

What makes this construction different?

It combines a woven glass-fibre backing with silicone adhesive. It is not ordinary PVC electrical tape, self-fusing silicone, aluminium-laminated glass cloth or PTFE-coated glass tape. Those constructions serve different selection requirements.

Can it operate continuously at 300°C?

Continuous operation at 300°C is not established. The catalogue indicates up to 300°C, but the exposure duration, conditions and current article-specific test data need confirmation. Do not substitute another manufacturer’s continuous or intermittent limit.

What formats are listed?

White 50 mm × 33 m, SKU 000199-01, and white 50 mm × 50 m, SKU 000200-01. Select the actual stocked format; artwork on historical product imagery does not override these listed dimensions.

Is it certified for electrical or aerospace work?

No article-specific electrical voltage rating, insulation class, flame classification or aerospace certification has been established here. Request the current supplied article documentation and qualify the complete process or insulation system.

Will it remove cleanly after heating?

No universal clean-removal promise is made. Trial the exact substrate, heat exposure, dwell time and removal conditions. Silicone adhesive alone does not establish a residue-free outcome.

Bring the process into the tape specification.

Tell us what you need to cover, the heat cycle and the surface beneath it. Request the current article data and a sample for your qualification trial.

Discuss your application

Talk to FasVix

Let’s qualify your glass-cloth detail.

Request a sample, product details or a quotation for White Glass-Cloth High-Temperature Tape.

  • The component and surface material
  • Peak temperature, continuous temperature and exposure time
  • Masking, wrapping or insulation finishing objective
  • Required approvals, removal conditions and roll quantities
